Train Lighting Battery Chargers (TLBC)
Charging train lighting systems at depots and yards.
Overview
As the name indicates, TLBC are used in charging train lighting batteries at depots and yards.
Applications
Train lighting battery charging at depots and yards
Advantages
Precise engineering design
Easy maintenance
Longer service life
Resistance against abrasion
Reliable performance
Key Features
Common O/P voltage controller
Battery current limiting for each battery path, sized to suit batteries simultaneously
Each battery string is protected independently, so batteries of different capacities can be charged on the same unit without one path overcharging or affecting another.
Input high voltage disconnect and battery low voltage disconnect
Automatically isolates the unit on abnormal input voltage or a deeply discharged battery, protecting both the charger and the battery bank.
Audible alarm on low battery bank voltage
Indication through bright LEDs or multi-point facia facility
Technical Specifications
Generic
- Suitable for charging of
- Train lighting systems
- Installation
- No
- Warranty
- 1 year
Input
- Voltage
- 415V/230V, 1/3 Phase AC
- Frequency
- 50 Hz +/-5%
- Power factor (50%–100% load), max
- 0.75
- Efficiency
- >= 90%
- Dielectric strength
- 2 KV AC (I/P to O/P & Case)
Output
- Nominal voltage
- 110–150V DC
- Output rating
- 3 Phase: 200/300 A; 1 Phase: 40–75 A
- Net regulation
- +/- 1%
- Ripple factor
- <= 1%
- Battery current limit
- 120/320 Ah of battery
Protection
- AC input circuit breaker
- Yes
- DC output circuit breaker
- Yes
- DC over voltage protection
- Yes
- Battery input fuses
- Yes
- Charger overload
- Yes
- Battery charging current limit
- Yes
- Short circuit protection
- Yes
- Fuse capacity
- 63 Amps HRC fuse
Construction
- Cabinet material
- CRC sheet, duly powder coated case
- Input high voltage disconnect
- Yes
- Battery low voltage disconnect
- Yes, provided
- Display
- Analog (standard); customizable on request
- Common O/P voltage controller
- Yes, provided
- Battery current limiting per battery path
- Yes
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -10°C to +70°C
- Cooling type
- Convection
- Humidity
- < 95%
Alarms & Indications
- Audible alarm on low battery bank voltage
- Yes
- Input on
- Yes
- DC over voltage
- Yes
- DC under voltage
- Yes
- AC supply fail
- Yes
- Charger fail
- Yes
- Rectifier fuse fail
- Yes, for thyristor type
- Battery fuse blown / battery isolated
- Yes
- Load on battery
- Yes
- Battery discharging
- Yes
- Bright LED / multi-point facia indication
- Yes

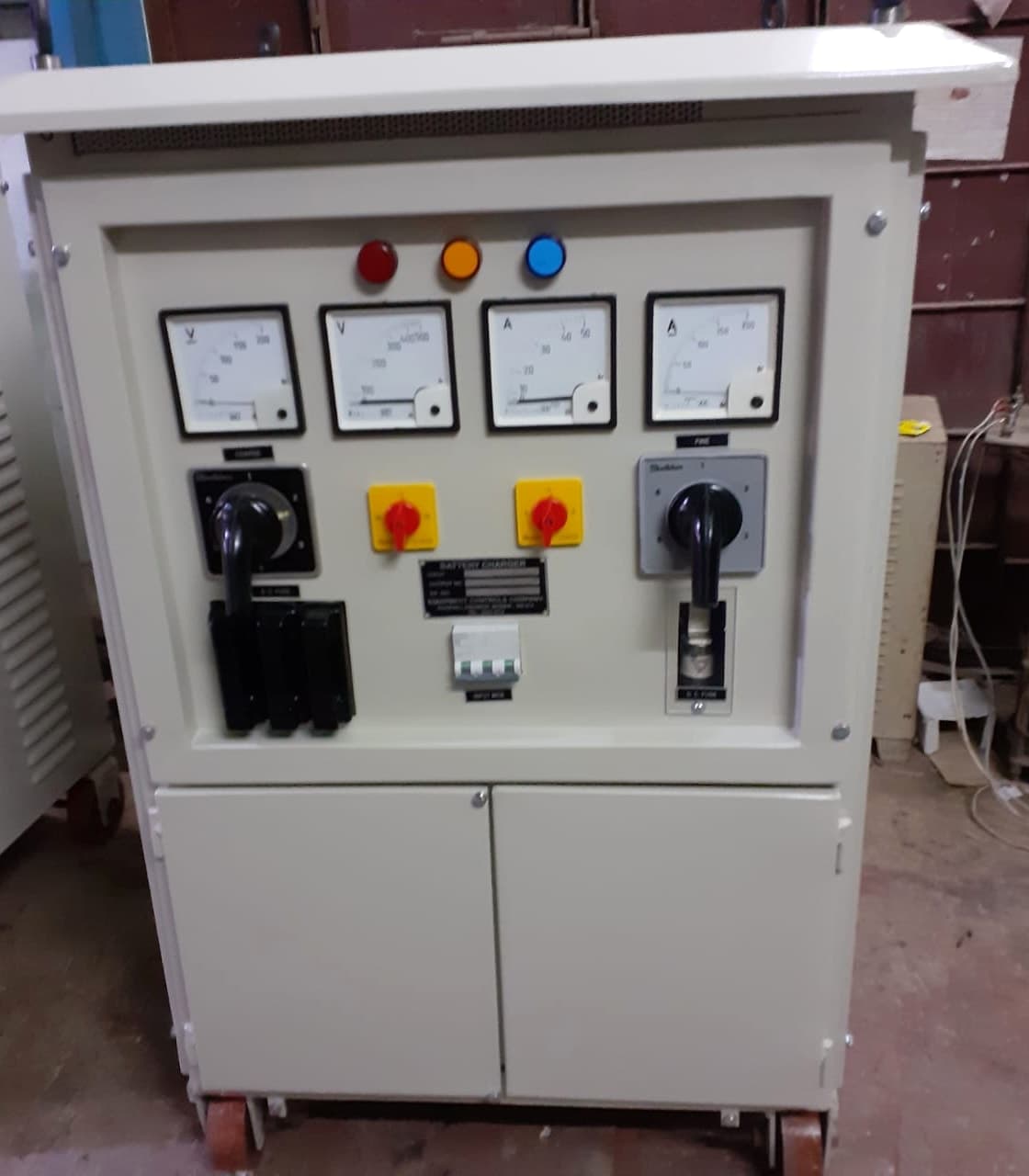

From Our Factory Floor
